Laser High Speed P/T/Z System LJ-M series LJ-M36WIR manufacturer from China Global CCTV Security Co.,Ltd.

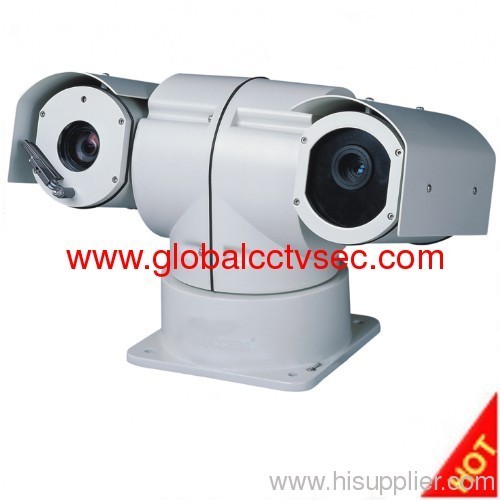

Laser High Speed P/T/Z System LJ-M series

Place of Origin:

Shanghai, China (Mainland)


	Add to My Favorites
HiSupplier Escrow	Share \|

Product Detail

Model No.: LJ-M36WIR

PTZ Camera: Laser ptz security camera

Brand Name: Globalcctvsec

IP66 Laser Rugged IR PTZ Camera 36x LJ-M36WIR Laser High Speed P/T/Z System.PTZ Camera with Laser Illuminator 360° continuous Pan 180° Tilt.Pan Tilt Z

Product: Laser High Speed P/T/Z System

Item #: LJ-M Series

Description:

It could penetrate through the forest and camouflage net compared with other cameras which could not carry out this function
Little power consumption, and endurable for using, with the farthest radicalization distance, it is up to 200 meters
It could widely used for the environment such us night, bad environment, and farther range control.
Weather proof design, high die-cast aluminum construction, anti-shock, anti-corrosion, the protection grade IP66, with wiper function.
360°continuously rotation, the range upward angle up to 180°, no blind spot .
128 preset positions and with 6 cruising tracks
The power supply AC24V.

Laser High Speed P/T/Z System
Model	LJ-M18WIR	LJ-M26WIR	LJ-M36WIR
Image Sensor	1/4 Exview HAD CCD
Active Pixels	752(H) x 582(V)
Synchronization	Internal / External
Video Output	VBS 1.0Vp-p / 75 Ohms
White Balance	Auto / Manualz
Scanning frequency	15.625Khz(H) 50Hz
Horizontal Resolution	480TVL
S/N Ratio	>50dB
Electronic Shutter	1/1~1/10000s	1/1~1/10000s	1/50~1/10000s
Min. Illumination	0.01Lux	0.01Lux	0.7Lux
Focal Length	f=4.1~73.8mm	f=3.5~91mm	f=3.4~122.4mm
Image Processing	Digital Detail Enhancement (DDE)
Zoom	Total 216X	Total 312X	Total 432X
	Optical 18X	Optical 26X	Optical 36X
	Digital 12X	Digital 12X	Digital 12X
Focal / Iris	Auto/Manual
Mechanism Parameter
Preset Pan Speed	100°/s
Preset Tilt Speed	60°/s
Manual Pan Speed	0°~80°/s
Manual Tilt Speed	0°~60°/s
Pan Range	360° Continuously
Tilt Range	+90°~-90°
Preset Position & Cruising Tracks	128(Max), 6 Tracks
Communication	Multiprotocol, Baud rate from 2400Bps to 19200Bps for optional, RS485
Work Temperature	-35°C to +55°C (w/ Housing)
Relative Humidity	90%
IP Grade	66
Power Supply	DC10.5V ~ DC18V (50VA) (optional) AC24V (60VA)
Impact Resistance	≥4G
Weight	7Kg / 14Lbs
